SigmaBEND AP

Intuitive 3D Press Brake software solution

3D Interface for Better Press Brake Control

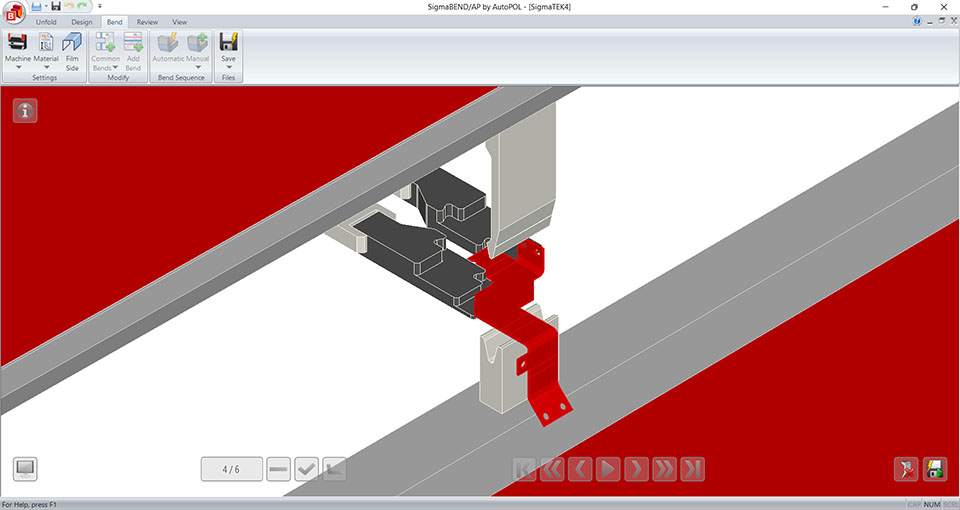

SigmaBEND AP utilizes full 3D simulation to maximize the speed, quality, and efficiency of press brake operations. The ability to interactively change programming parameters provides ultimate control. Verifying bending operations offline frees up valuable machine time, improves first-off reliability, and reduces manufacturing costs.

SigmaBEND AP can transform your fabrication process

Download Brochure

SigmaBEND AP Increases Accuracy, Reduces Scrap

Through detailed bend instructions, even a less experienced operator can confidently bend a part accurately the first time, while being fully aware of the tooling and bend sequence prior to the start of the program—reducing scrap and delivering further efficiencies to the shop floor.

SigmaBEND AP provides an automatic programming solution to reduce the bend bottleneck through increased accuracy, optimization of setup and tooling, and standardized programming and bend sequencing.

SigmaBEND AP Comprehensive Tooling

SigmaBEND AP includes ready-to-use industry-standard tooling libraries
Gets the job done with support for special tools for hemming and extensions
Quickly add new custom tool profiles with DXFs or parametric shapes
Customize favorite tool preferences to meet the needs of the job

Accurate Programming

SigmaBEND AP reduces clicks which improves profitability by shrinking programming time
Fast, automatic sequencing and tool selection creates optimized and reliable sequences
Eliminate costly programming errors and material waste with collision analysis

SigmaBEND AP is Focused on Automation

Create updated flat patterns based on tooling selection to ensure more accurate finished parts
SigmaBEND AP integrates directly with SigmaNEST to create a seamless workflow for bend programming to flat pattern cutting
Bend program details can be mapped to SigmaNEST part data fields for improved quoting and bend information visibility

SigmaBEND AP Packages

= Yes Supported, = Not Supported

	SigmaBEND AP BendSim	SigmaBEND AP BendSim Pro
Import
2D Import Import 2D DXF files to create 3D models using an interactive import tool	DXF Only	DXF,DWG
3D Import Import from a wide variety of 3D file formats including STEP, ACIS, SolidWorks, Inventor, SolidEdge, NX, Creo, Catia, IGES, JT	STEP,ACIS	All Formats
CAD Properties Detect CAD Properties during import to assign material automatically or filter assemblies based on file properites
Assemblies Import and break down assembly files using an interactive assembly processing tool
Export
2D CAD Export Flat pattern geometry to for use in SigmaNEST for cutting accurately sized blanks	DXF Only	DXF,DWG
3D CAD Export update flat and folded geometry for a 3D CAD representation of the finished part as STEP or ACIS format
General
Industry 4.0 Data Sharing Export additional part property information to an Industry 4.0 Data sharing XML for use in down stream operations or ERP integration
Custom Properties Populate custom property data on SigmaBEND model files to share using various export formats
Dimensioning Use dimensioning tools to measure distances on the 3D model
Barcodes Add customized barcodes to process documentation outputs to quickly link to posted NC programs
Machines
Machine Setup Configure multiple press brake machines to use specific tooling libraries, controller post processors and customize ram and back-gauge movements	Up to 2 Machines	Unlimited
Post Processors Choose from a wide variety of preconfigured machines and post processors	1	All Supported
Advanced Machine Options Configure angle measurement tools, front gauge supports, and heming tables for applicable machines
Shared Settings Share machine setups and settings via a network locaiton to ensure all workstations are in sync
Unfolding
Step Bends Customize the unfold of large radius bends to create smaller individual steps in the unfolding and bending. Automated tools available in the Pro version
Film Side Specify film location on the 3D model to help indentify the part as it is flipped and rotated during programming. Automated tools available in the Pro version
Assembly Processing Unfold individual parts within an assembly file through an interactive processing tool. Automated tools are available in the Pro version
Bending
Pre-Bends Add pre-bends to existing bends to help prevent collisons during the part bending
Reverse Bends Add bends to parts which are then reversed using a second unbending process to help prevent collisons during the part bending.
Passive Bends Assign bends as passive to let the software know they are already formed or to ignore them when programming.
Add Bend Add new bends to existing parts which were not present on the original models.
Time Estimates Customize setup and cycle time estimates for the bending process based on part sizes, weights, and other bending process details.
Collision Detection Collisions with the various elements of the machine and tooling are highlighted during the simulation to help reduce programming errors.
Tool Libraries Customize tool libraries with specific tooling profiles, segement lengths, and quantities to ensure accurate station setups.
Add-ons
Designer Enhance your SigmaBEND AP package with the ability to create simple 3D sheet metal models and pipe sections from parametric shapes

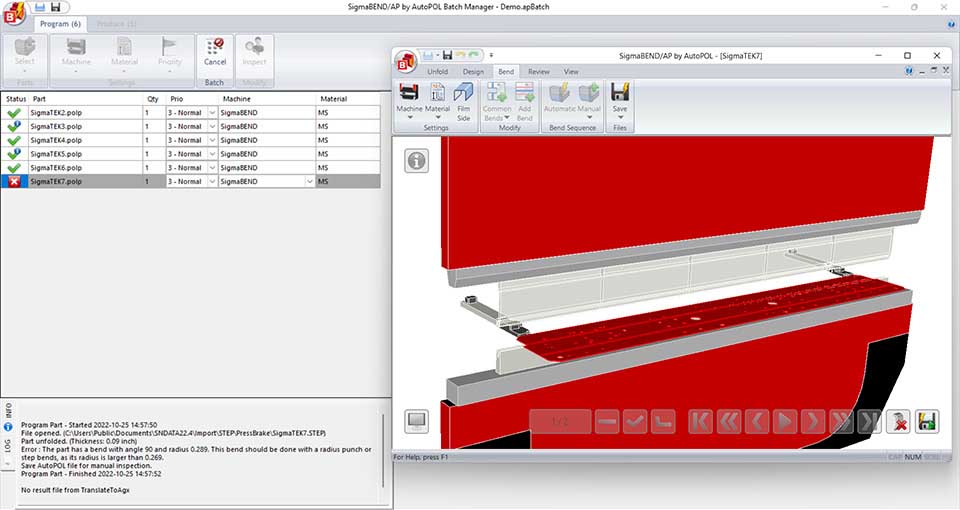

Batch and Remote Automate your bend programming even further with unattended processing of parts and assemblies and sequence your programs to reduce tool changes
Network License Upgrade Upgrade the license to support network sharing
